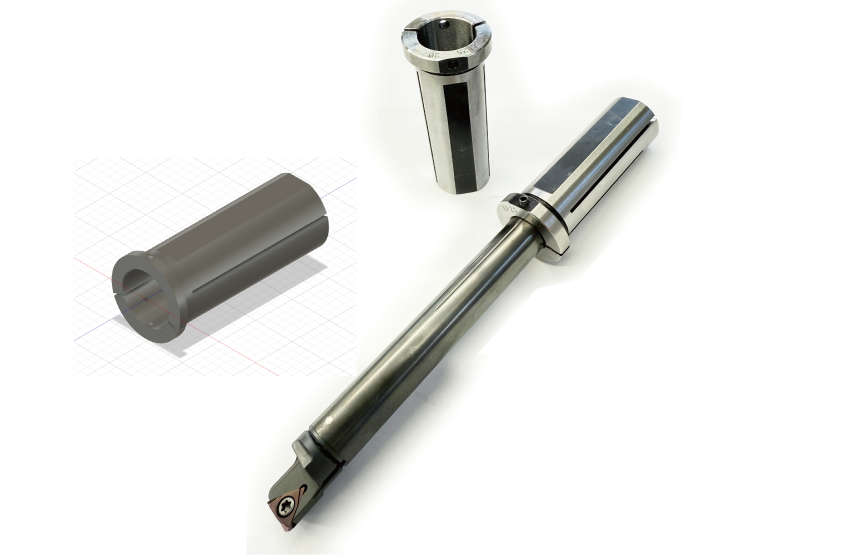

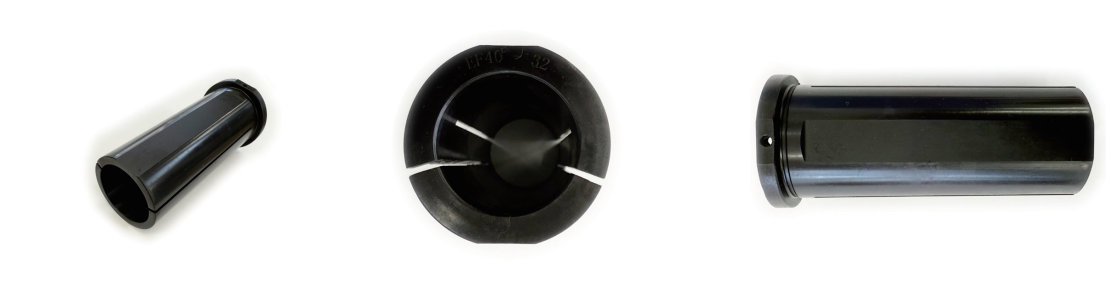

防振用ホルダー用スリーブEF型は円周把握で強固なクランプが出来ます

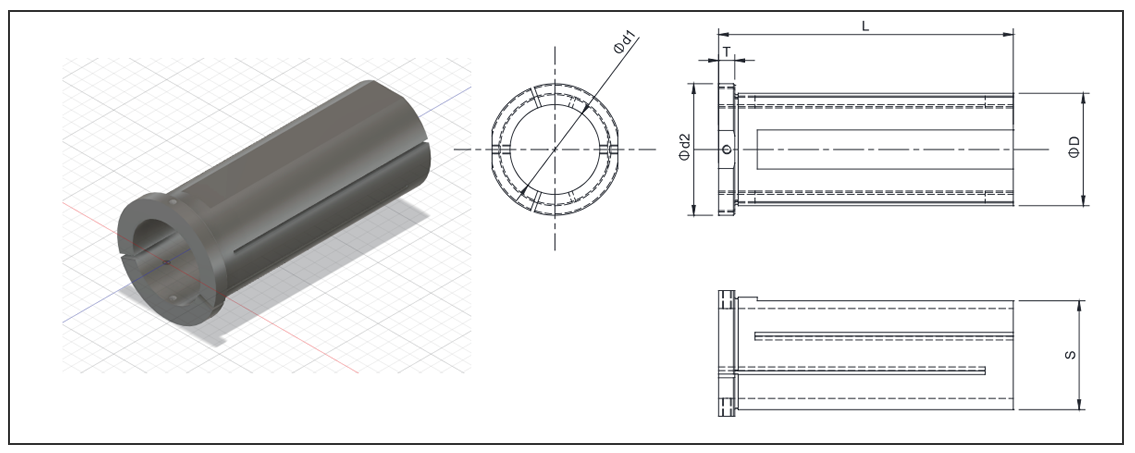

| 型 式 | ΦD | Φd1 | L | T | S |
|---|---|---|---|---|---|
| EF25-08 | 25 | 08 | 75 | 6 | |
| EF25-10 | 25 | 10 | 75 | 6 | |
| EF25-12 | 25 | 12 | 75 | 6 | |
| EF25-14 | 25 | 14 | 75 | 6 | |
| EF25-16 | 25 | 16 | 75 | 6 | |
| EF25-18 | 25 | 18 | 75 | 6 | |
| EF25-20 | 25 | 20 | 75 | 6 | |
| EF32-08 | 32 | 08 | 95 | 6 | |
| EF32-10 | 32 | 10 | 95 | 6 | |
| EF32-12 | 32 | 12 | 95 | 6 | |
| EF32-14 | 32 | 14 | 95 | 6 | |
| EF32-16 | 32 | 16 | 95 | 6 | |
| EF32-18 | 32 | 18 | 95 | 6 | |
| EF32-20 | 32 | 20 | 95 | 6 | |
| EF32-22 | 32 | 22 | 95 | 6 | |
| EF32-25 | 32 | 25 | 95 | 6 | |
| EF40-08 | 40 | 08 | 105 | 5.6 | |
| EF40-10 | 40 | 10 | 105 | 5.6 | |
| EF40-12 | 40 | 12 | 105 | 5.6 | |
| EF40-14 | 40 | 14 | 105 | 5.6 | |
| EF40-16 | 40 | 16 | 105 | 5.6 | |
| EF40-18 | 40 | 18 | 105 | 5.6 | |
| EF40-20 | 40 | 20 | 105 | 5.6 | |
| EF40-22 | 40 | 22 | 105 | 5.6 | |
| EF40-25 | 40 | 25 | 105 | 5.6 | |
| EF40-32 | 40 | 32 | 105 | 5.6 |
| 型 式 | ΦD | Φd1 | L | T | S |
|---|---|---|---|---|---|
| EF50-08 | 50 | 08 | 125 | 5.6 | |
| EF50-10 | 50 | 10 | 125 | 5.6 | |
| EF50-12 | 50 | 12 | 125 | 5.6 | |
| EF50-14 | 50 | 14 | 125 | 5.6 | |
| EF50-16 | 50 | 16 | 125 | 5.6 | |
| EF50-18 | 50 | 18 | 125 | 5.6 | |
| EF50-20 | 50 | 20 | 125 | 5.6 | |
| EF50-22 | 50 | 22 | 125 | 5.6 | |
| EF50-25 | 50 | 25 | 125 | 5.6 | |
| EF50-32 | 50 | 32 | 125 | 5.6 | |
| EF50-40 | 50 | 40 | 125 | 5.6 | |
| EF60-08 | 60 | 08 | 135 | 5.6 | |
| EF60-10 | 60 | 10 | 135 | 5.6 | |
| EF60-12 | 60 | 12 | 135 | 5.6 | |
| EF60-14 | 60 | 14 | 135 | 5.6 | |
| EF60-16 | 60 | 16 | 135 | 5.6 | |
| EF60-18 | 60 | 18 | 135 | 5.6 | |
| EF60-20 | 60 | 20 | 135 | 5.6 | |
| EF60-22 | 60 | 22 | 135 | 5.6 | |
| EF60-25 | 60 | 25 | 135 | 5.6 | |
| EF60-32 | 60 | 32 | 135 | 5.6 | |
| EF60-40 | 60 | 40 | 135 | 5.6 | |
| EF60-50 | 60 | 50 | 135 | 5.6 |
